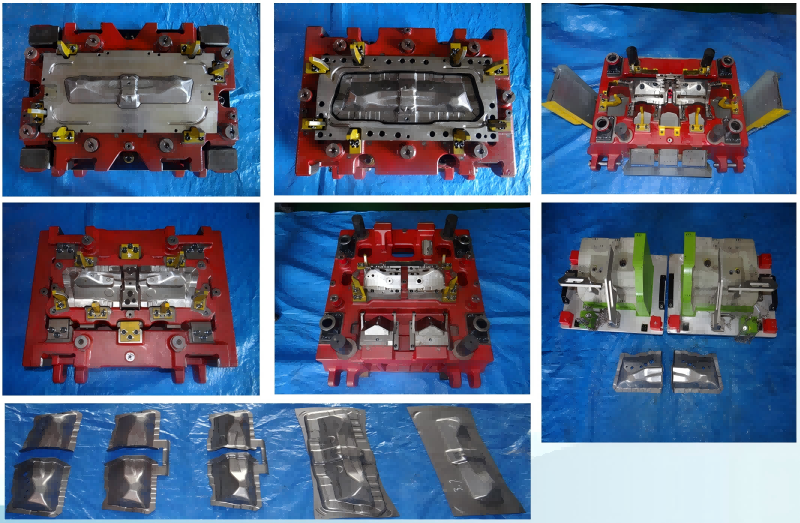

Transfer Dies
Transfer Dies | Multi-Station Stamping for Formed Components
Introduction: Mastering Three-Dimensional Complexity
When parts evolve beyond flat blanks into complex, three-dimensional forms, Transfer Dies provide the intelligent solution. Unlike a progressive die where the part remains on a strip, a transfer system uses independent mechanical fingers to lift and precisely move the part from station to station within the press. This allows for multi-sided access and more radical forming operations. At Wangwang Team, we engineer transfer die systems for medium-to-high volume production of deep-drawn, cupped, or fully formed components that demand superior structural integrity and dimensional accuracy.
How Transfer Dies Work: Intelligent, Sequential Forming
A transfer die system operates within a single press. The process begins with a blank being fed into the first station. After each press stroke, a synchronized mechanical or robotic transfer mechanism picks up the part and moves it to the next station, where a subsequent operation (drawing, re-drawing, ironing, trimming, piercing) is performed. This continues until the finished part is ejected. This method combines the automation of progressive dies with the flexibility of individual tooling stations, making it ideal for creating sophisticated enclosures, containers, and assemblies.
Core Advantages of Our Transfer Die Systems
Production of Deep, Complex Geometries: Enables multi-directional forming, deep drawing, and intricate side features impossible in a single plane.
Superior Material Utilization & Strength: Starts with optimized blanking, minimizing scrap. The controlled forming process enhances grain structure and part strength.
High Consistency with Flexible Sequencing: Offers automated, high-speed production while allowing for easier adjustment of the sequence or individual stations compared to a fixed progressive strip.
Ideal for Medium Volumes: Provides an excellent balance of automation and tooling cost for production volumes where a full progressive die may not be economical.
Applications We Enable
Our transfer dies are perfect for manufacturing parts such as:
Automotive: Wheel hubs, transmission cases, oil pans, complex structural brackets.
Appliances: Motor housings, sink basins, compressor shells.
Industrial: Cylinders, pressure vessels, heavy-duty enclosures.
Consumer Goods: Cookware, metal housings for tools, and deep-drawn containers.
Partner with Our Transfer Die Experts
Leverage our engineering prowess for your complex formed parts. We manage the entire process from feasibility study and simulation to the design of the die and transfer system, ensuring a robust and efficient manufacturing solution.
